Winees F3
Radar Dual Lens Floodlight Cam

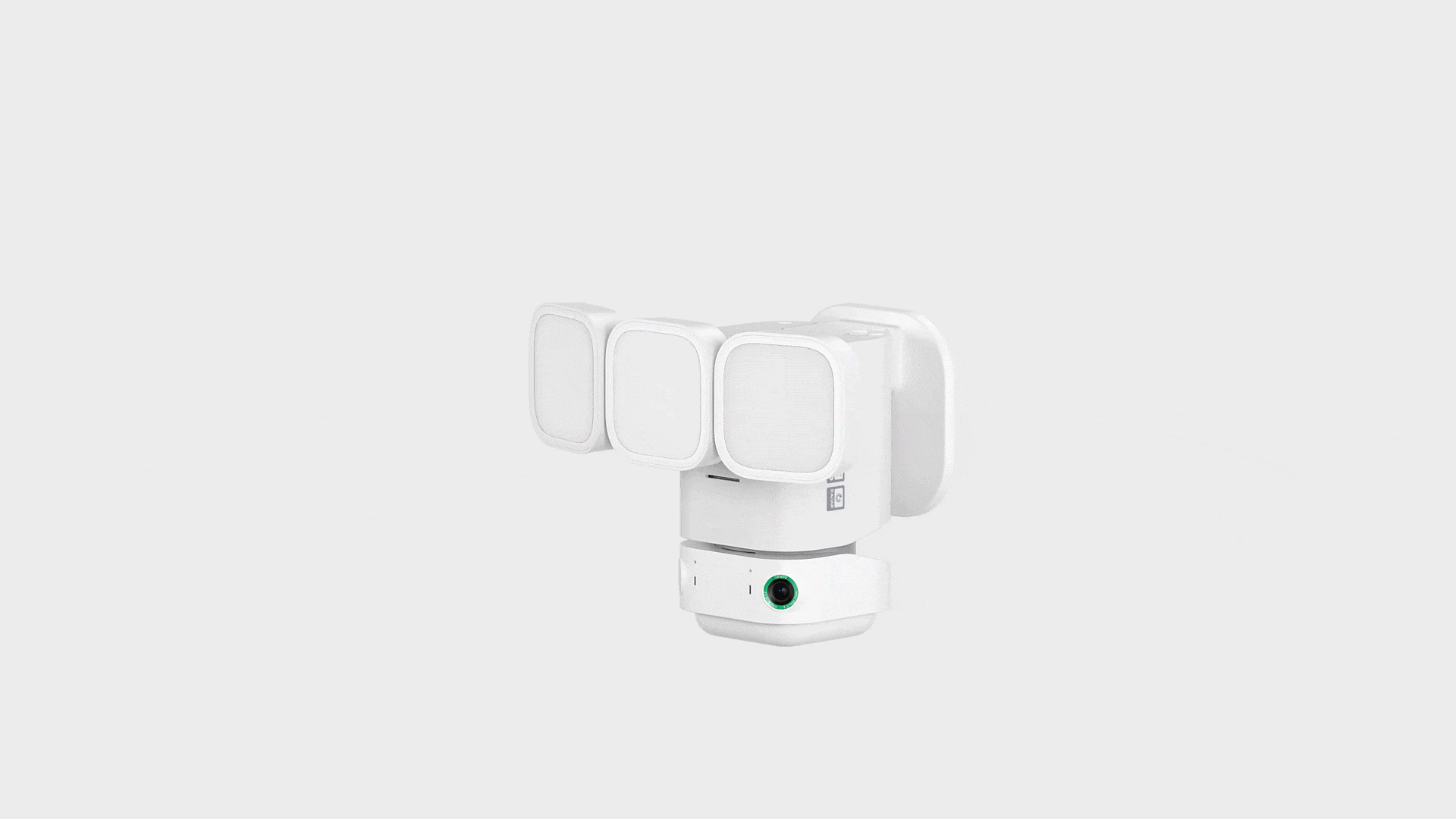

Drawing inspiration from the symbolism of robots as the pinnacle of technology, F3 embraces this through high-standard functionalities and a modern, simple robot appearance. Unlike traditional cameras, F3 boasts a friendlier design, seamlessly blending into the contemporary courtyard.
DURATION / 10 months
YEAR / 2022-2023
PROJECT TYPE / Product Lanch
Brief
Enhance the installation experience of outdoor floodlight products and create a modern appearance design that matches innovative technologies.
Problems
01
Install security
Installing at heights on a ladder while simultaneously holding a power drill and bulky products can be more dangerous.
03
Security Coverage
Floodlight Camera is typically installed in front and back yards. The narrow field of view of a single lens is insufficient to cover the entire yard, often resulting in blind spots.
02
Styling Integrity
Most traditional floodlights are modular (with separate light body and camera), resulting in patchwork in appearance and lacking integrity in design.
04
Detection Technology
Traditional PIR (Passive Infrared) detection functions are susceptible to obstacles and weather conditions such as trees, bushes, vehicles, heavy rain, or thick fog in the yard.
Solutions
Enhanced Installation Experience
Users can quickly install without needing tools
Design Integrity
Integrate the camera, base, and lighting into a unified appearance design.
Dual Lens
Fusion Technology
Creating a seamless 180-degree panoramic view
Radar Detection Technology
Radar's penetration capability complements PIR detectors to form dual detection protection.
2D Explorations
3D Development
V1
V2
V3
Refinement of product design details
Adjustments after testing the functional prototype
Prototype Validation
Lens Flare Test
Lamp Temperature Test
PIR Sensor Trigger Test
Final Design
Graphic Design
The Core
F3 is driven by the age-old mission of safeguarding families and property. Its strength lies in its dual-lens image fusion system, offering a sweeping 180-degree field of view, eliminating blind spots for clarity. F3 like a sentry that uses strobe lights to quietly drive away intruders at night. In the realm of security, the ability to detect potential threats in low light or adverse weather conditions is crucial. F3's advanced radar technology ensures that every movement is detected and analyzed, offering an extra layer of security when it matters most.
Dual Usage Mount
F3 is designed for the safety of the entire experience. Innovation shines with its patented wall-mounted installation design. The quick snap-on mechanism enables safe installation at heights, achievable with bare hands at last step and without tool. This forward-thinking approach redefines convenience in security camera installation.
01
Separate Mount
Press and hold the button on top of the floodlight camera and pull outward to release the mount bracket from the camera.
02
Wiring
Use wire nuts to connect mount bracket wires to the rest of the wires from junction box.
03
Fixed Mount
Insert the central screw through the center of mount bracket and screw it tightly. Use the rubber stopper to cover the central screw to prevent the central screw from rusting.
04
Snap on Main Body
Align the groove on the top of the floodlight camera with the groove of the mount bracket, then push in until you hear a "click" to make sure the floodlight camera and mount bracket are combined.
3D Radar Detection
Advanced 3D radar detection system offers unparalleled security in any environment. Operating at millimeter-wave frequencies, it detects subtle movements with unmatched accuracy. It tracks intruder trajectories, informing users of intruder status promptly. Capable of penetrating obstacles like trees, fences, and vehicles, it ensures no hiding spot goes unchecked. Unaffected by heavy rain or fog, it maintains reliable performance.
